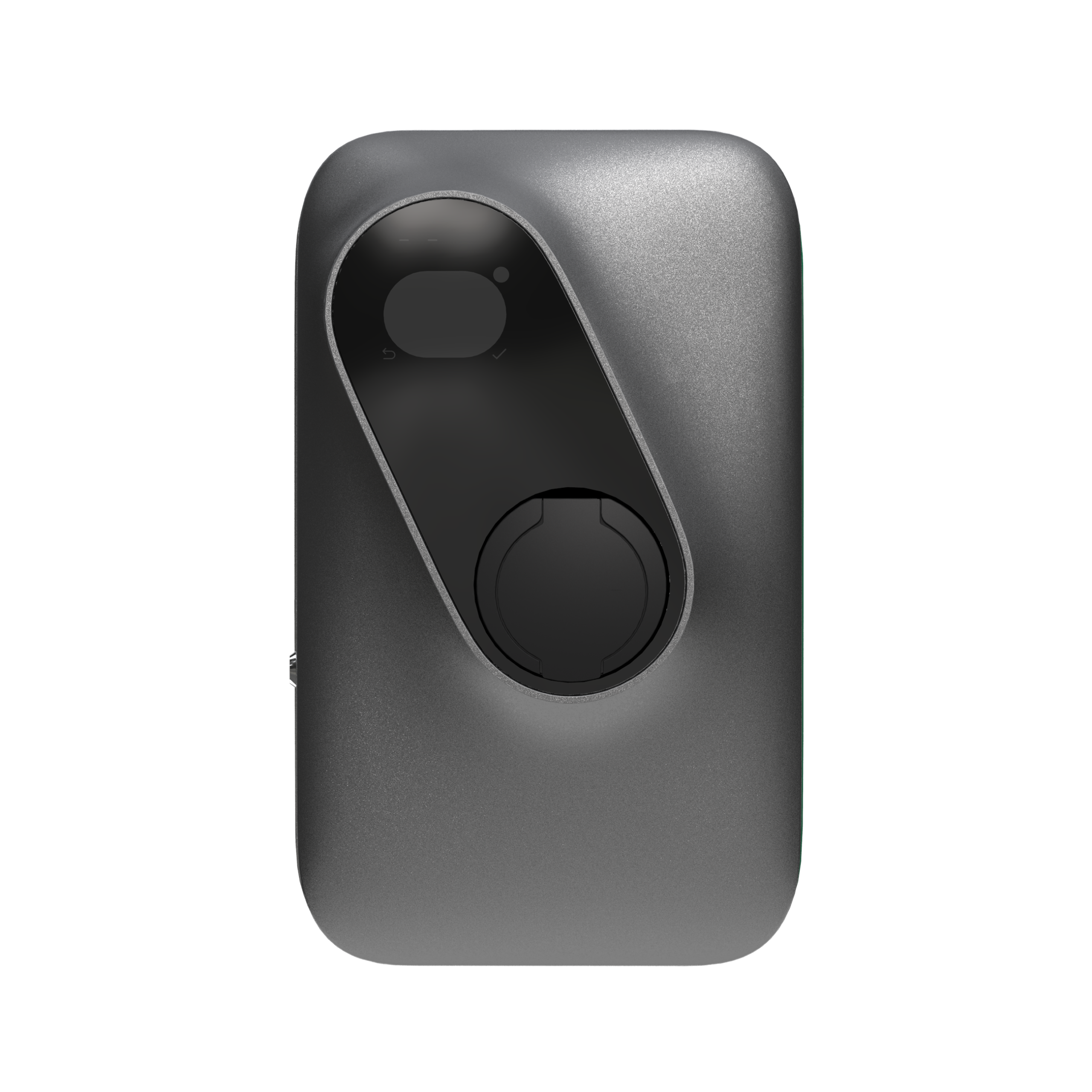

INCH Pro
INCH Pro chargers enable charge point
operators to serve a large number of EVs, even
in locations with limited power supply.
Listens to the user,
talks to the grid
The INCH Pro charging station enables operators to
serve a large number of EVs, even in locations with
limited power supply. Smart clustering and power
management capabilities help lower installation and
operational costs while support for several languages
and authorisation modes ensure broader applicability.
The durable enclosure of INCH Pro charging station is
built to withstand the harshest weather conditions
while allowing the business to stand out with the
design.
Easy to navigate
touch display
Build confidence at a glance. The user interface,
with support for multiple languages, is easy to
use and provides all the necessary information
for first-time and advanced users alike.
Different
authentication
modes
Different modes of authentication support several
use cases based on business case requirements.
Colour LCD screen on the charger can display
location-based information and advertising,
offering additional business opportunities.
Product information
Technical information
| Max charging power | 7.4 kW (1 x 32 A), 22 kW (3 x 32 A) |
| Charging outlet type | Type 2 socket (optional shutter) with a cable lock or Type 2 tethered charging cable |
| Level of protection | IP 56, IK 10 |
| Electrical protection | DC fault current sensors 6 mA (default) + RCD Type A/RCD type B/MCB char. C |
| User identification | PIN code, QR code, RFID, App* |
| Connectivity | OCPP 1.6 SOAP & JSON, Modbus TCP |
| EV communication | IEC 61851 |
| Communication | Ethernet, Wi-Fi or 4G LTE |
| Dynamic Load Management | Yes |
| Smart building integration (BEM) | Modbus TCP, custom smart meter integration |
| Energy meter | Yes, MID optional |
| Clustering | Up to 36 connectors, expandable** |
| User interface | LCD Screen, embedded web interface My INCH, App* |
| Material | Aluminium housing, Polycarbonate Lexan cover plate |
| Colour options | Graphite Grey, White optional |
| * When connected to a charge point management system | |
| **Depending on characteristics of charging site. |
Supported integrations
Designed for
scalability

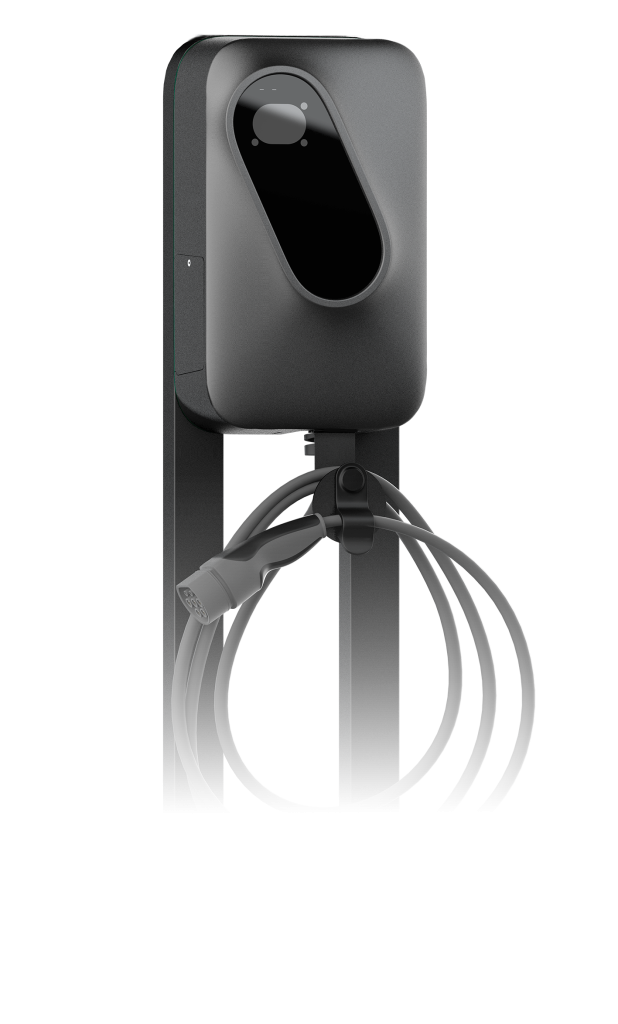

Master every location with different mounting
possibilities. Sand? Wall mount? Your call.
Load Guard
Unlock your INCH Pro’s full potential by pairing
it with a Load Guard and enabling the Dynamic
Load Management feature.
Faster charging
without investments
Grow your charging cluster as your fleet/user demand increases.
With Load Guard module you can charge faster without
upgrading the grid connection power thus reducing preparation
and charging costs. Prevent overloads by automatically shifting
charging times to off-peak hours and setting the max power for
the cluster. Increase grid connection point power only when
necessary.
Interactive charging
responds to the grid
conditions
Run clusters of charging stations with a peace in mind. Utilising
dynamic power management technology and AI, a group of
chargers can balance the available charging power between
chargers, autonomously responding to building power
consumption changes and grid conditions.
Reduced cost
by reducing
installation time

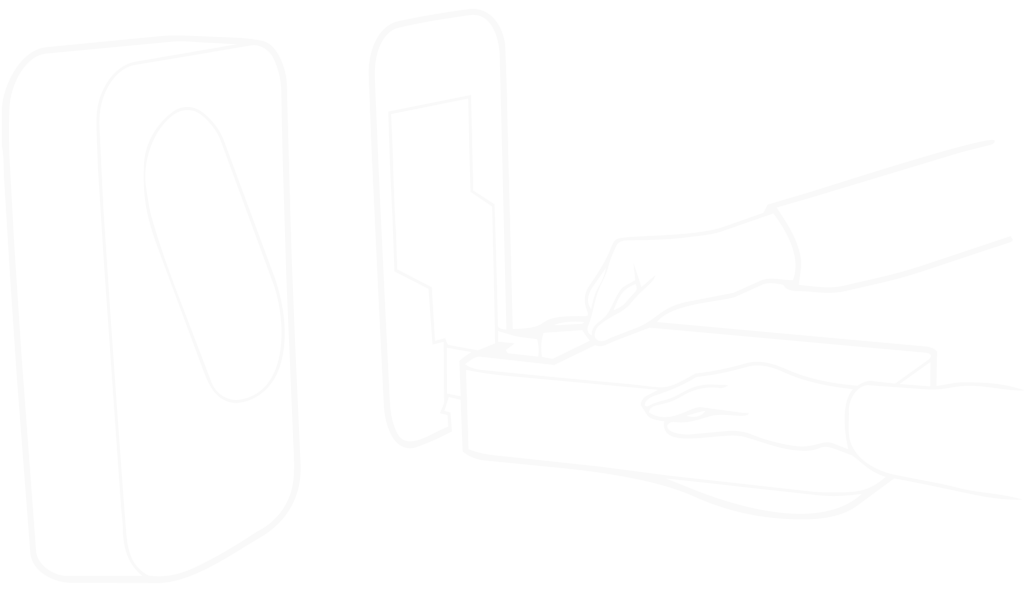

The charging station can be installed by a
single person. INCH Pro comes with a
mounting holder that keeps it in horizontal
ergonomic position during installation.
Web interface for
remote access and
maintenance
Monitor and manage charging through the dedicated
web interface either from a phone or computer. The
web app works on any device in the same network
and gives the user an in-depth insight into charging
energy consumption.
Make the charging
session worthwhile
Promote points of interest to build your business and
keep users engaged. Colour LCD screen on the
charger can display location-based information and
advertising, offering additional business
opportunities.
Unlock the full
potential with Ocean
back-end system
Connecting charging stations in charging management
system open up new possibilities for management and
monetization of charging infrastructure, remote
maintenance and support for users. Offer users a seamless
transition between charging locations with a single app,
while keep track of all your charging equipment out in the
field.
