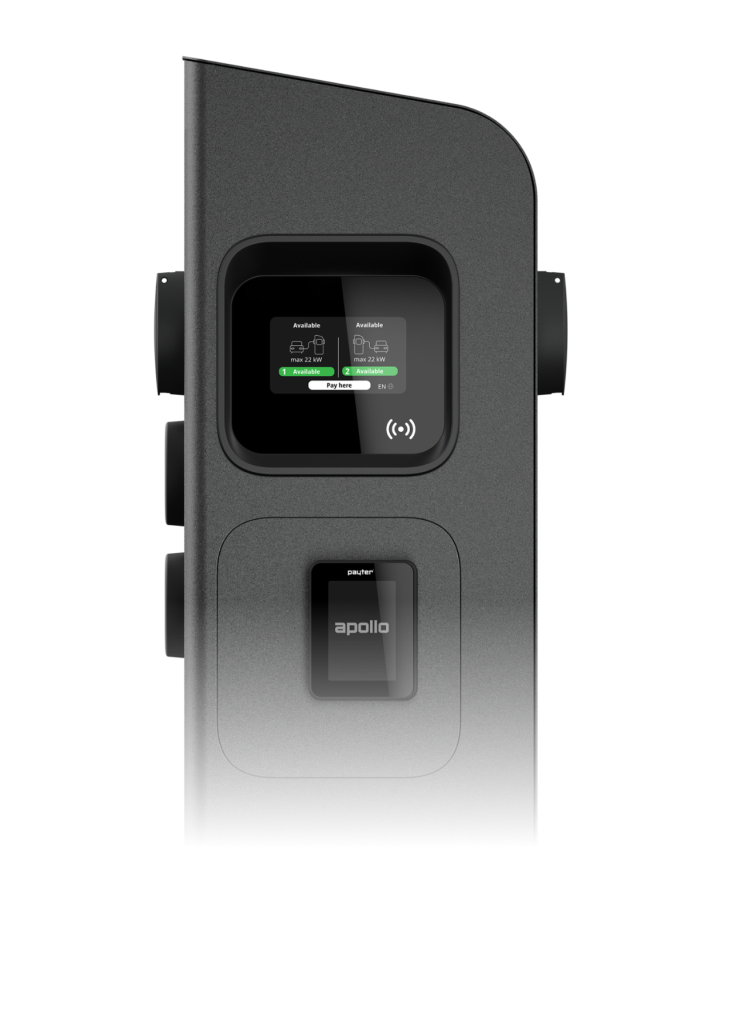

INCH Duo
A robust public AC charging station with an
elegant, unobtrusive yet distinct design.

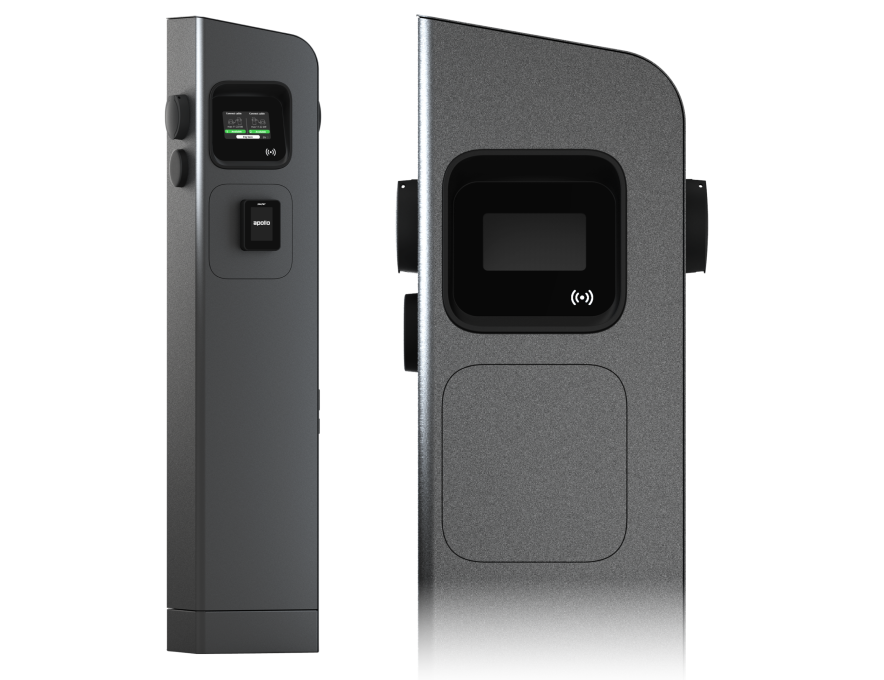

Distinct design,
new technology
INCH Duo is an unobtrusive, durable charger, ready for
continuous operation in demanding public locations.
Ergonomic design and a large display with
straightforward charging instructions and ad-hoc
payment option offer convenience for new users,
while optional integration with external sensor
devices like parking sensors help enhance
infrastructure accessibility and optimize usage
patterns.

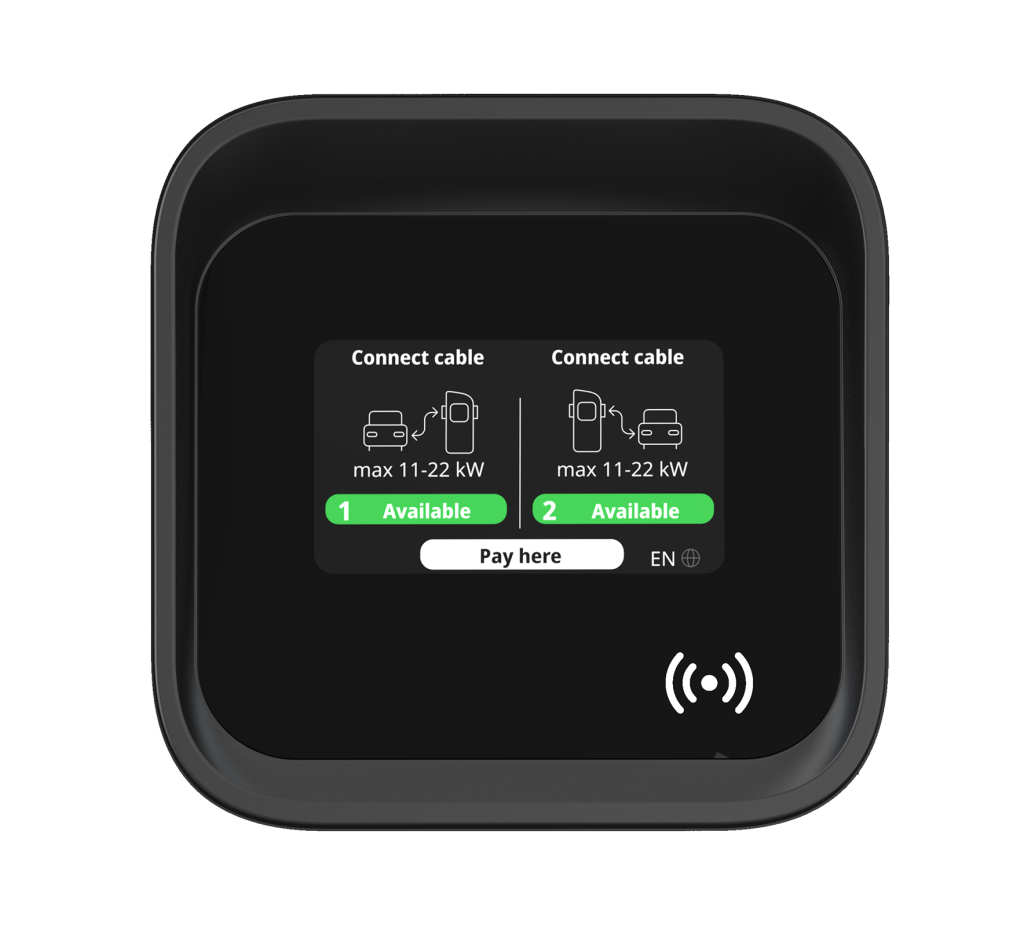

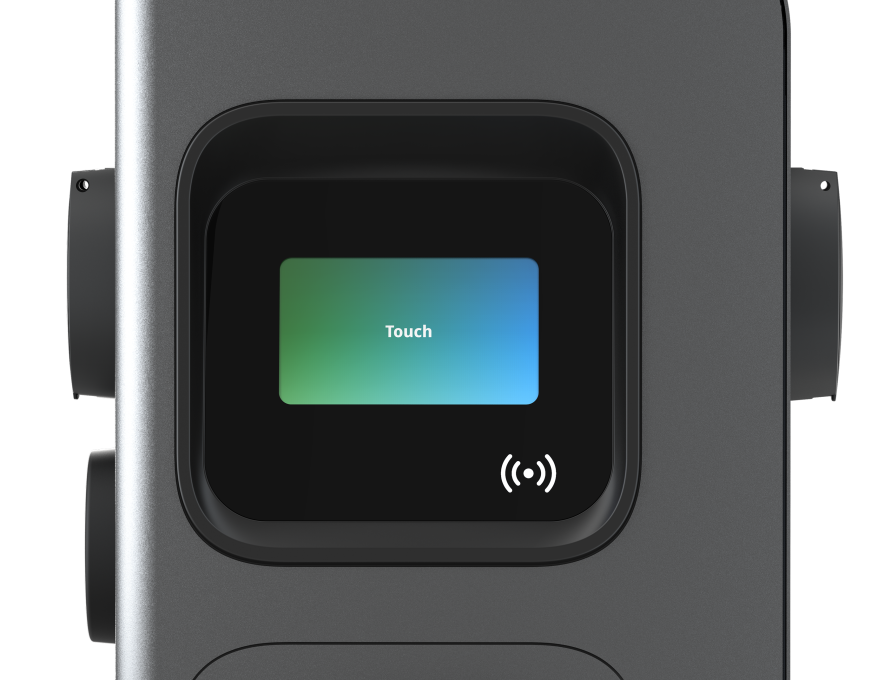

Easy to navigate
touch display
Build confidence at a glance. The user interface,
with support for multiple languages, is easy to
use and provides all the necessary information
for first-time and advanced users alike.

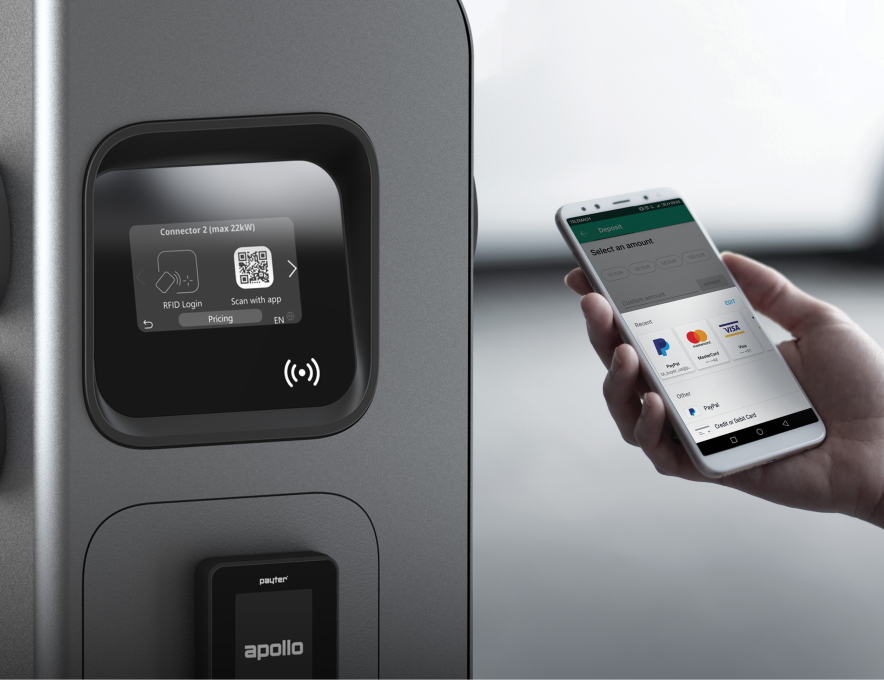

Different
authentication
modes

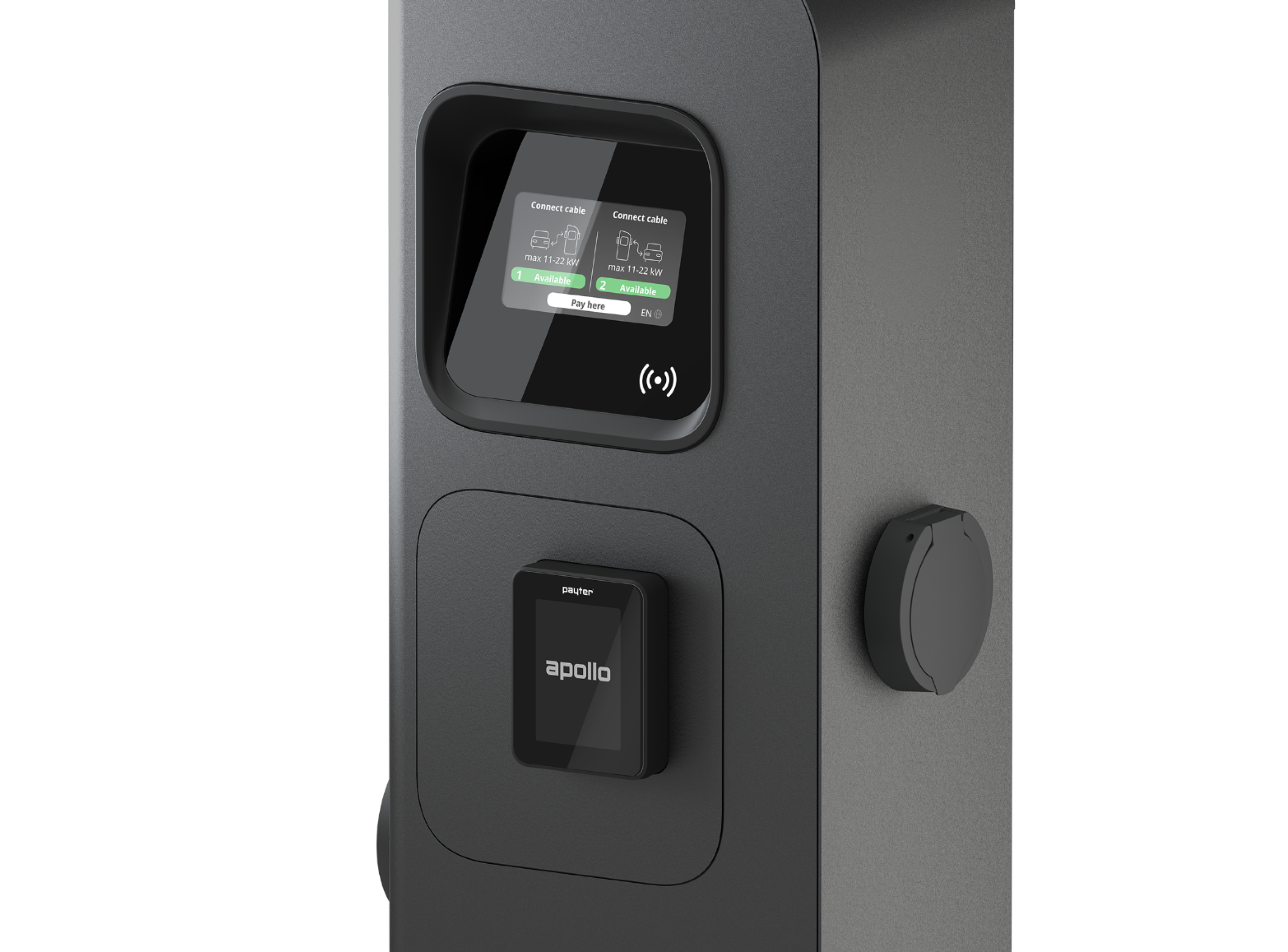

Different modes of authentication support several
use cases based on business case requirements.
Colour LCD screen on the charger can display
location-based information and advertising,
offering additional business opportunities.
Product information
Technical information
| Max charging power | 2 x 22 kW (3 x 32 A per connector) |

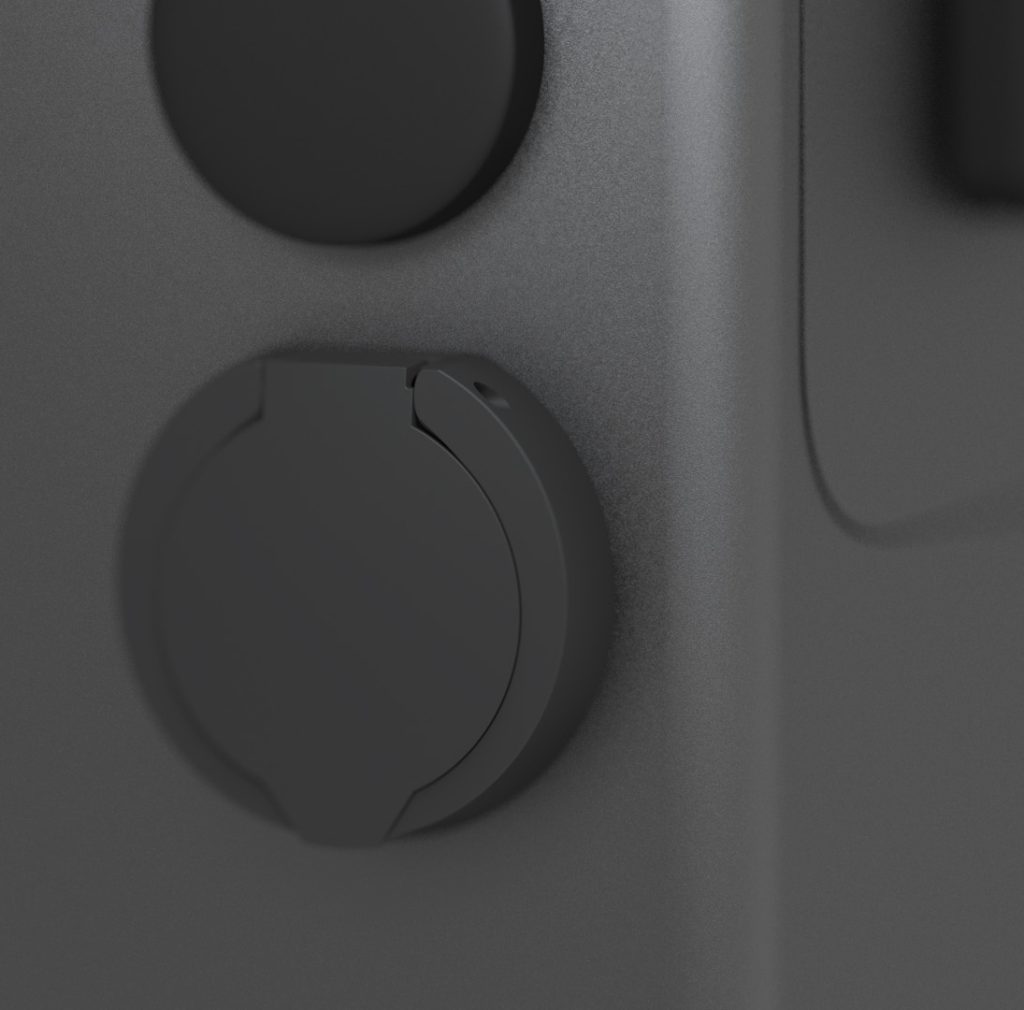

| Charging outlet type | 2 x Type 2 socket with a cable lock |
| Level of protection | IP 54, IK 10 |
| Electrical protection | DC fault current sensors 6 mA + RCD Type A/RCD type B/MCB char. C, 40 A |
| User identification | PIN code, RFID, Credit card, App* |

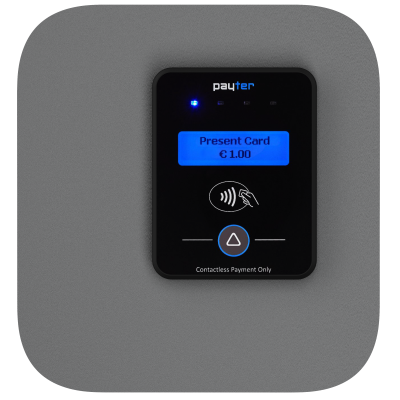

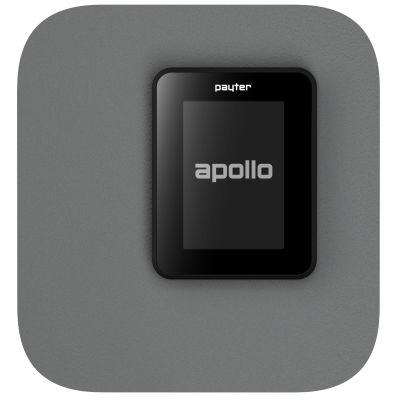

| Contactless payment | Yes, with NFC payment terminal |
| Connectivity | OCPP 1.6 SOAP & JSON, Modbus TCP |
| EV communication | IEC 61851 |
| Communication | Ethernet, Wi-Fi or 4G LTE |
| Dynamic Load Management | Yes |
| Smart building integration (BEM) | Yes, Modbus TCP |
| Energy meter | Yes, MID optional |
| Clustering | Up to 36 connectors, expandable** |
| User interface | App* or embedded web interface |
| Material | Stainless steel with anti-corrosion protection |
| Colour options | Grey, White |
| * When connected to a charge point management system | |
| **Depending on characteristics of charging site. | |
| Feature combination depends on selected configuration. |

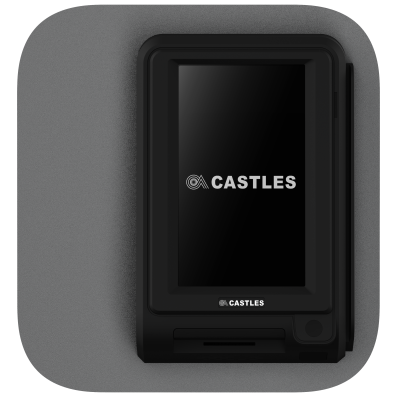

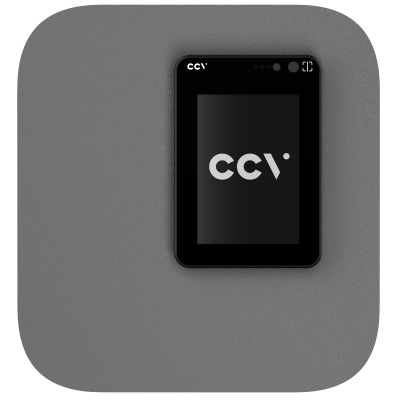

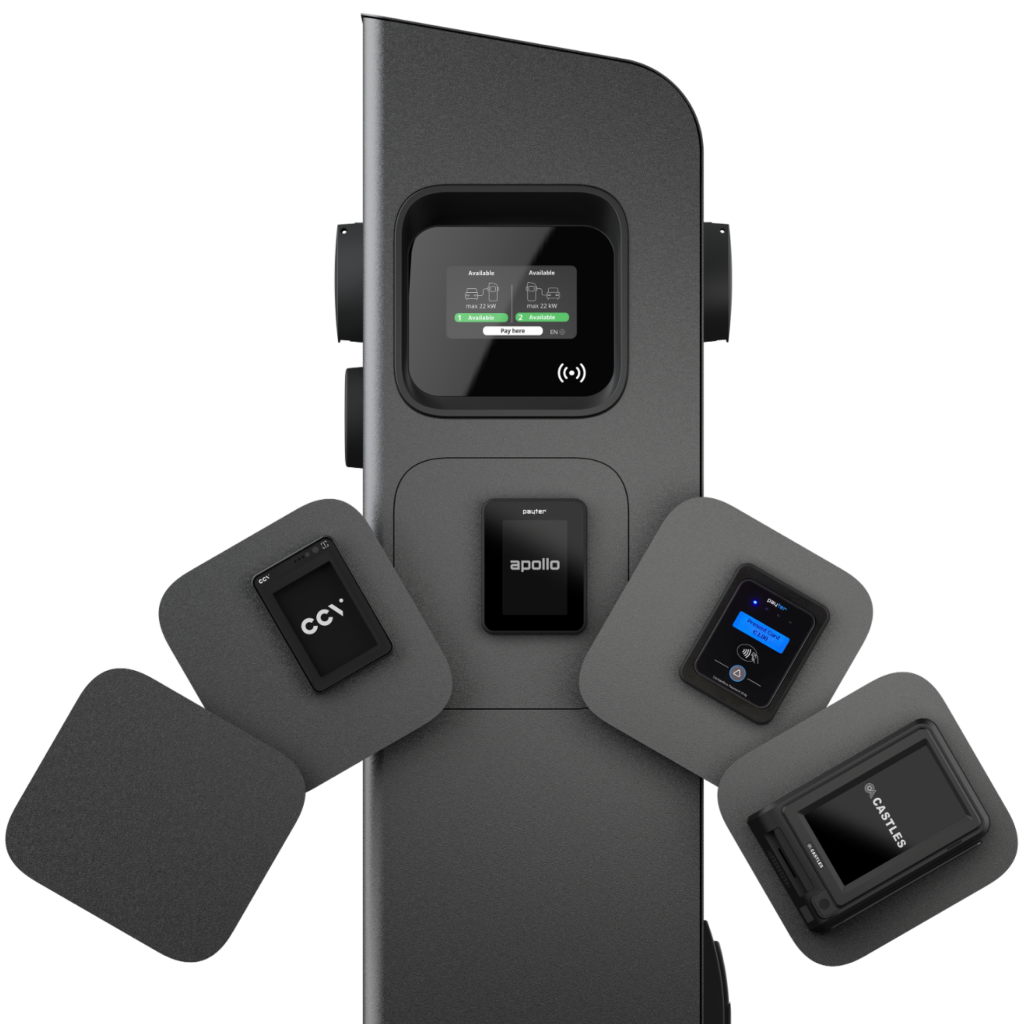

Supported integrations
Designed for
scalability

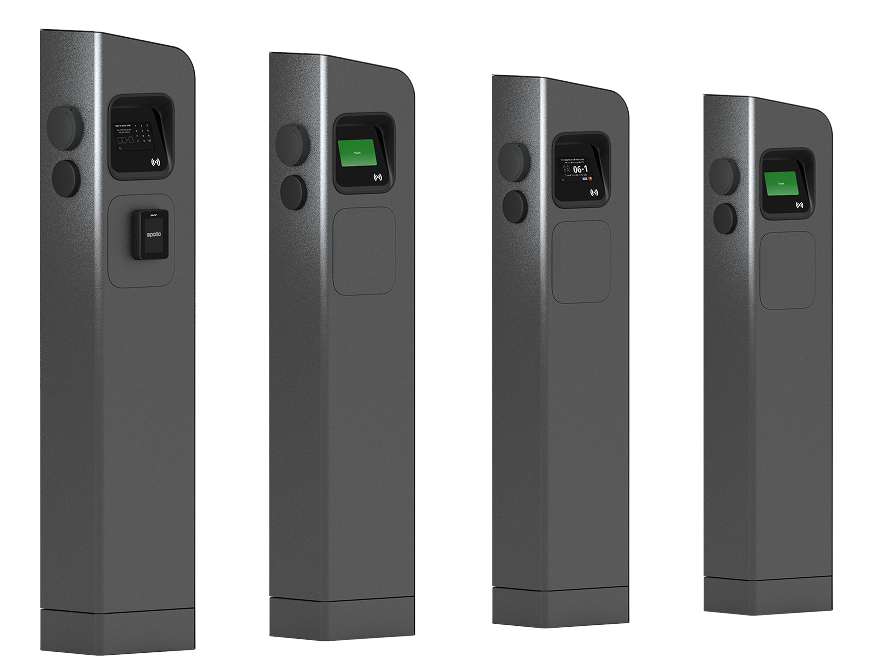

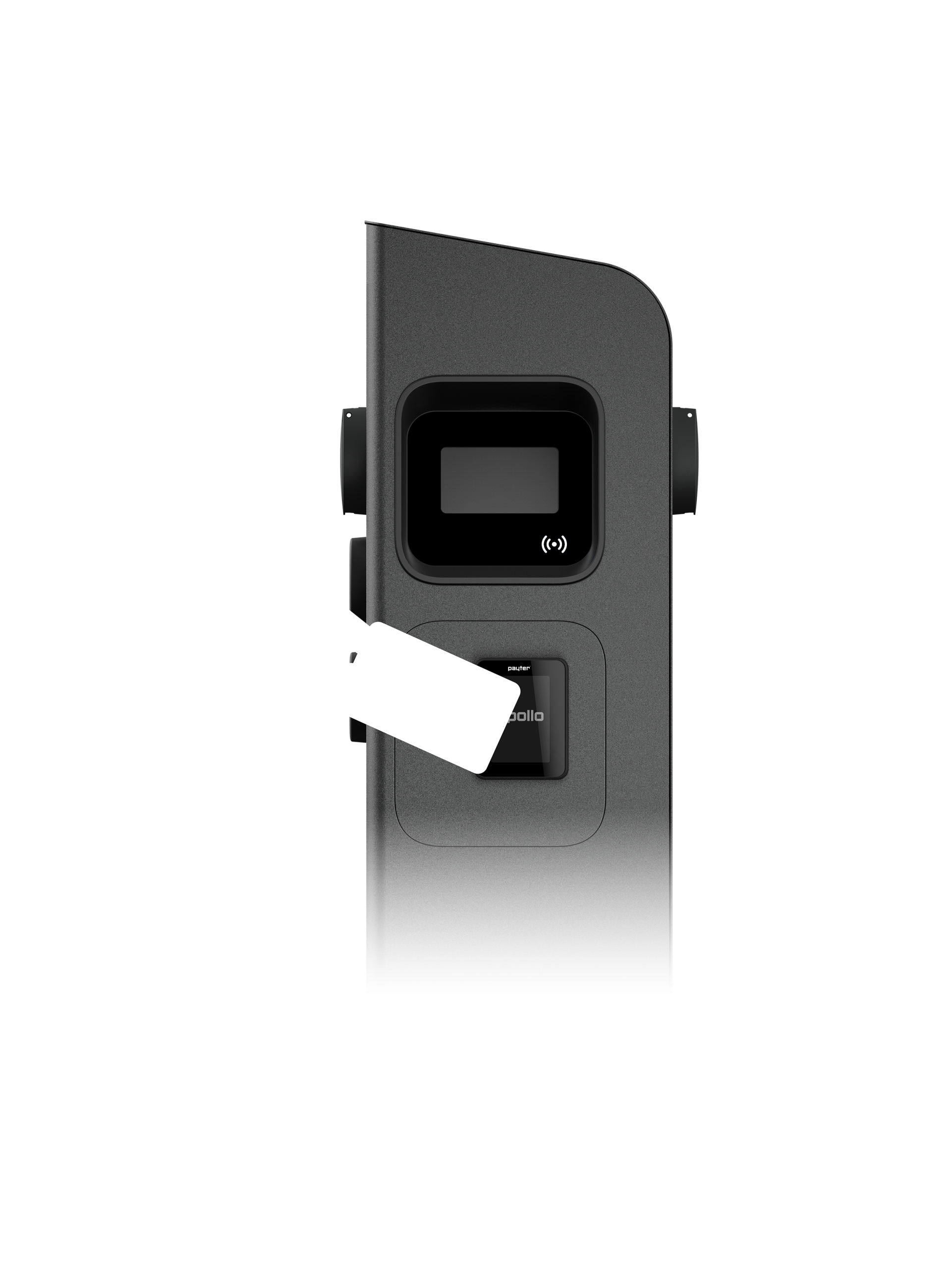

Enabling card payments for clusters with one charger
acting as both a charging station and payment kiosk.

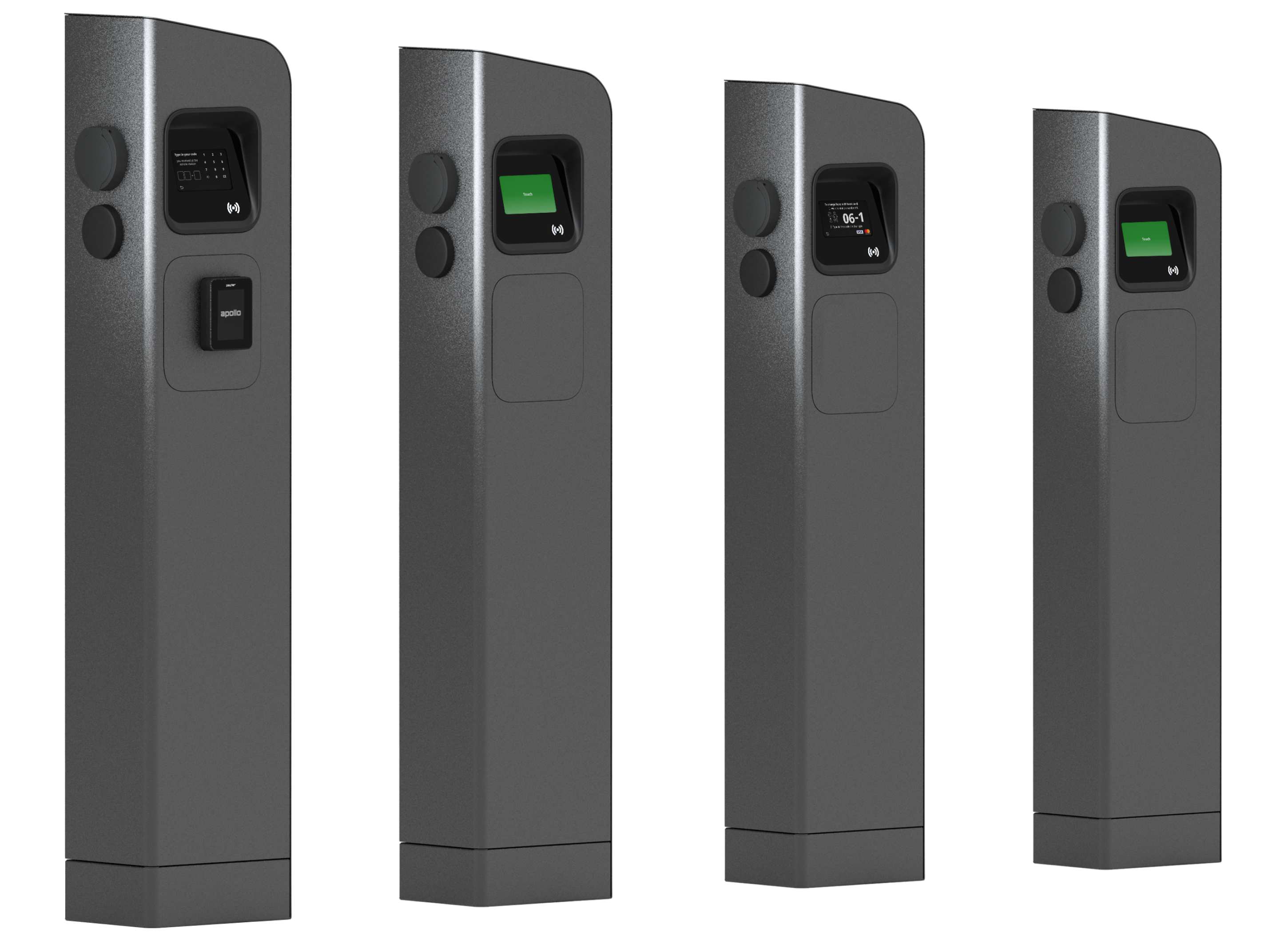

Big on robustness,
small on footprint
Compact street furniture design facilitates
installation in locations with limited available
space. Distinct design with a steep slope at
the top makes sure the stations are easily
recognizable and they stay clean. It is made
of robust stainless steel for outstanding
durability in all weather conditions.

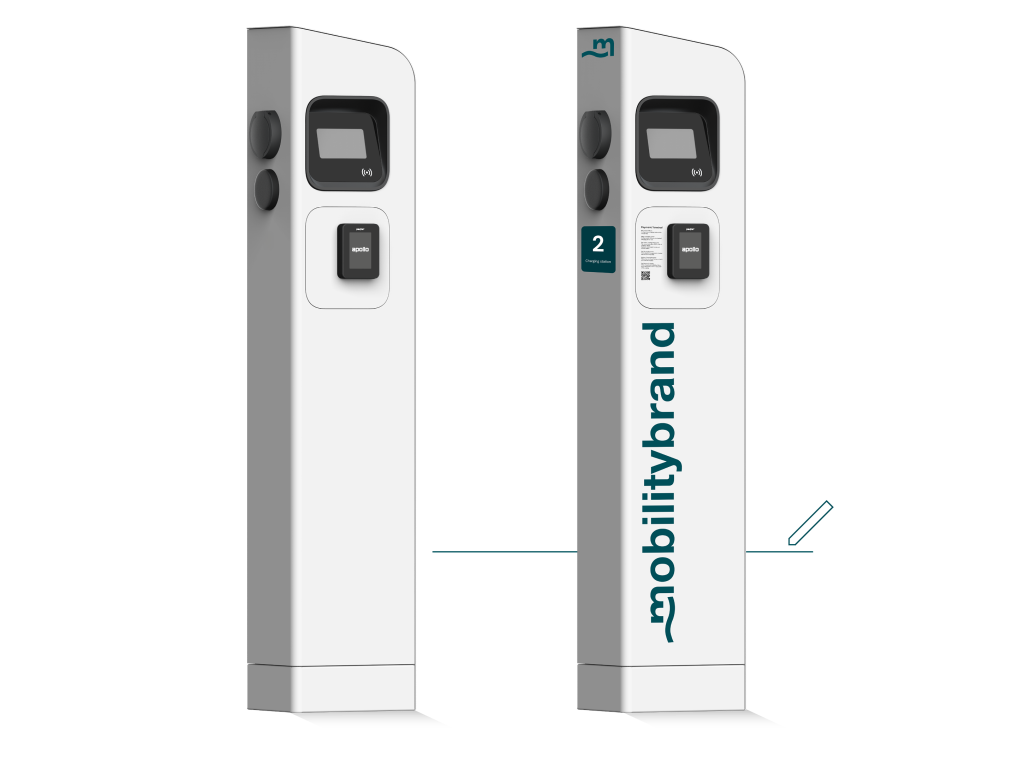

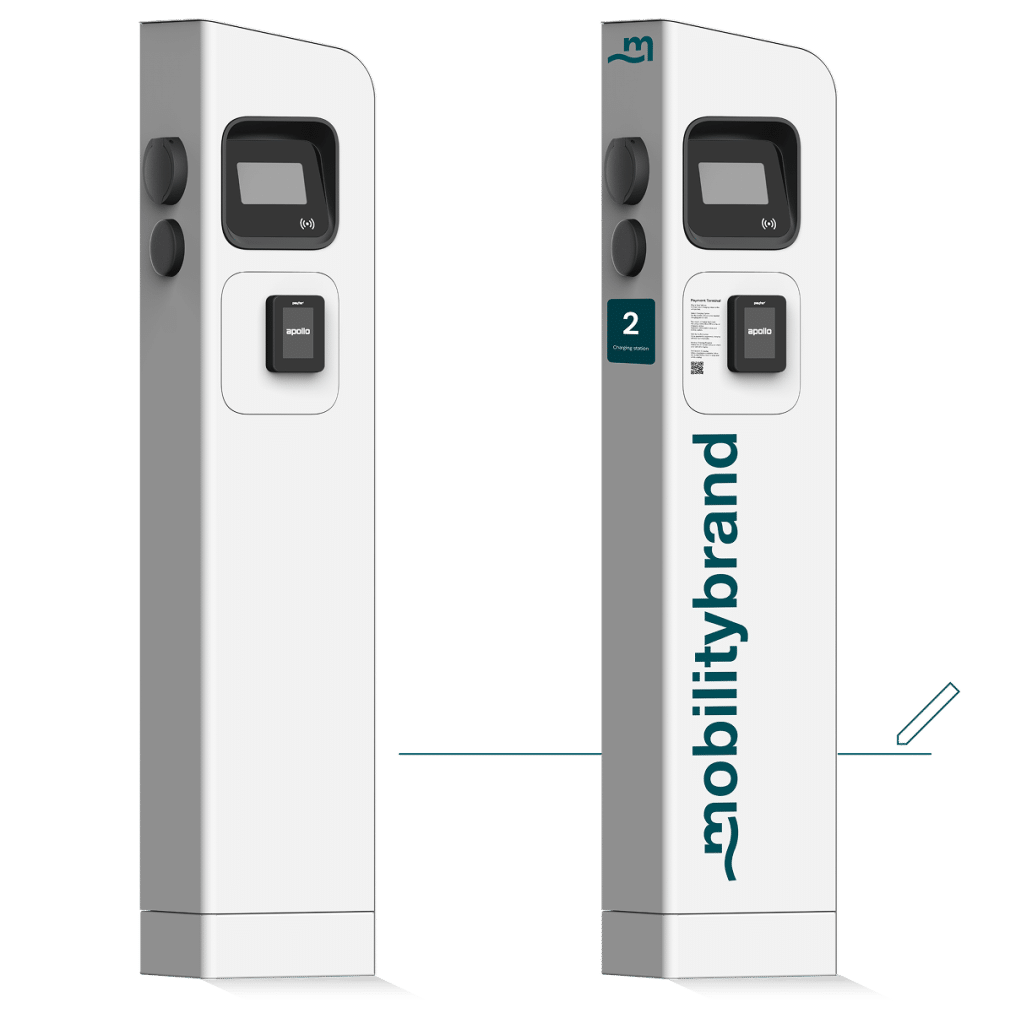

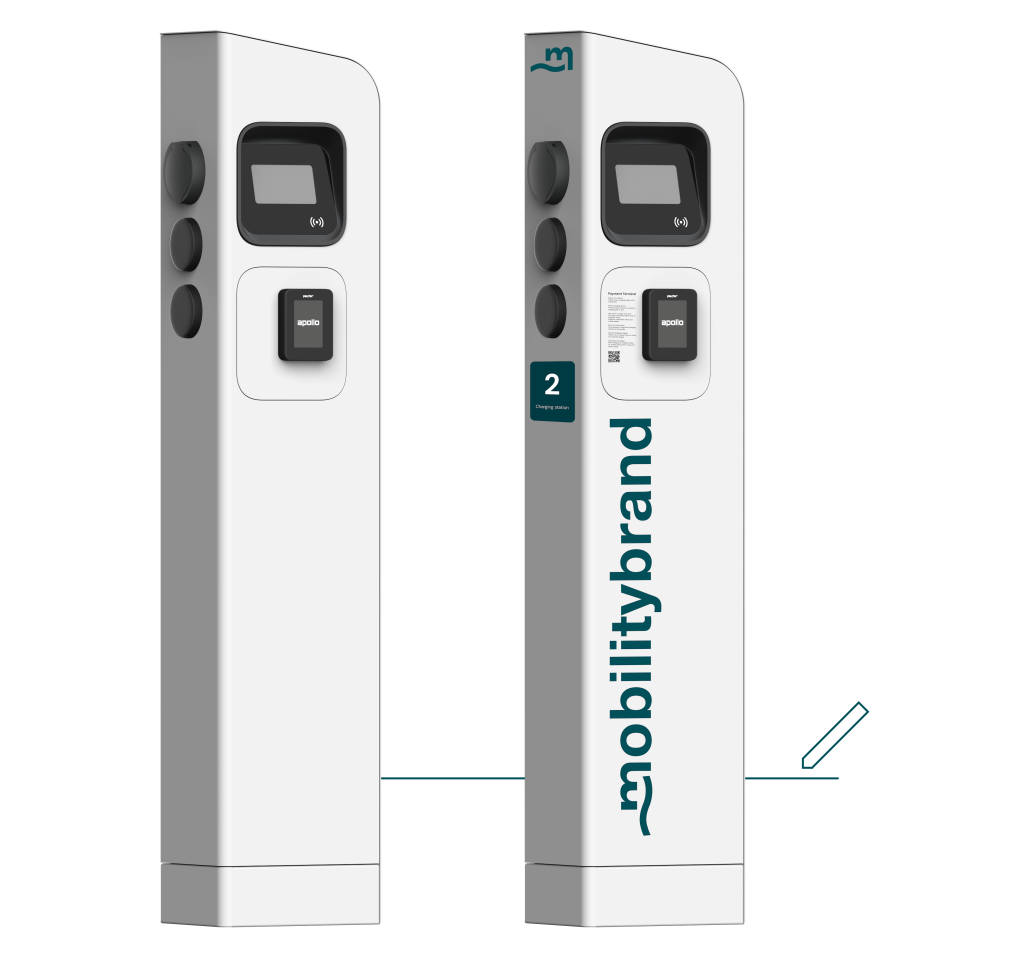

Apply customization
to stand out
Flat surfaces offer valuable opportunities for branding
and customization, to make sure your charging
network stands out. With its distinct shape, INCH Duo
charging station is easily spotted while remaining
unobtrusive in public locations.

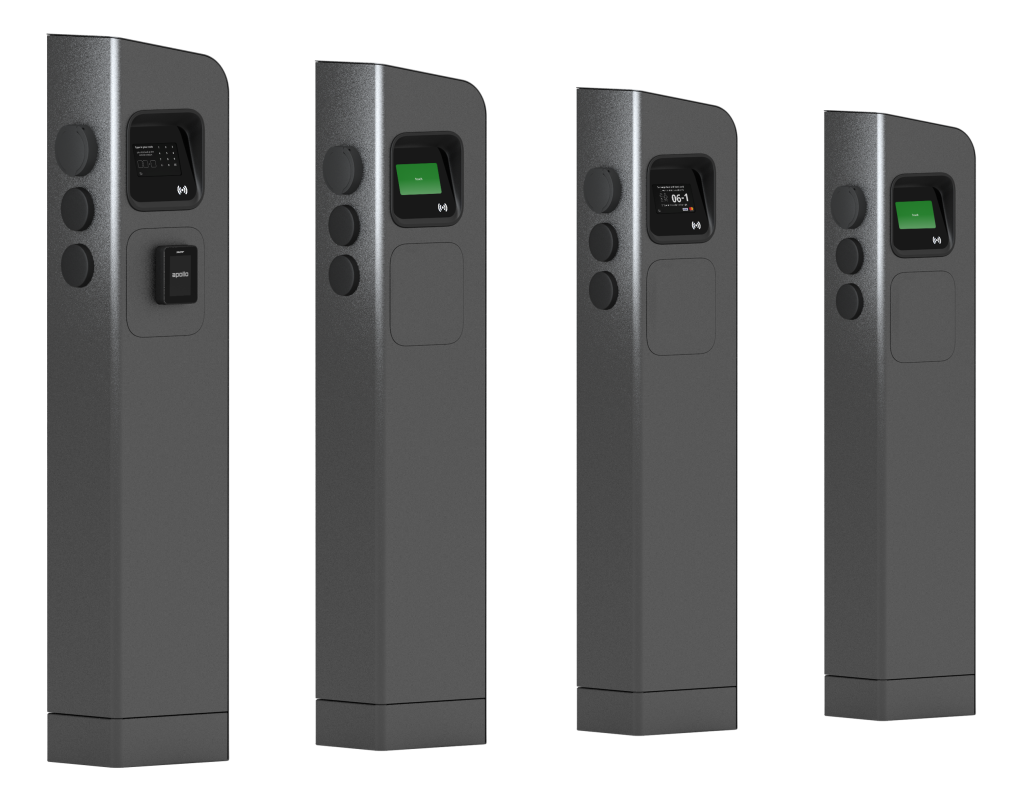

Operating multiple
charging stations?
With interactive charging, the power among them will be
distributed evenly. Clustering capabilities out-of-the-box ensure
the scalability of charging infrastructure on location. Cluster
power management algorithms support mixed autonomous
groups of Landis+Gyr charging units. Power management capabilities
can be further extended with Load Guard to balance the
available charging power between chargers, based on connected
vehicles, priorities and required amounts of energy without
overloading the installation.
Easy installation
and maintenance

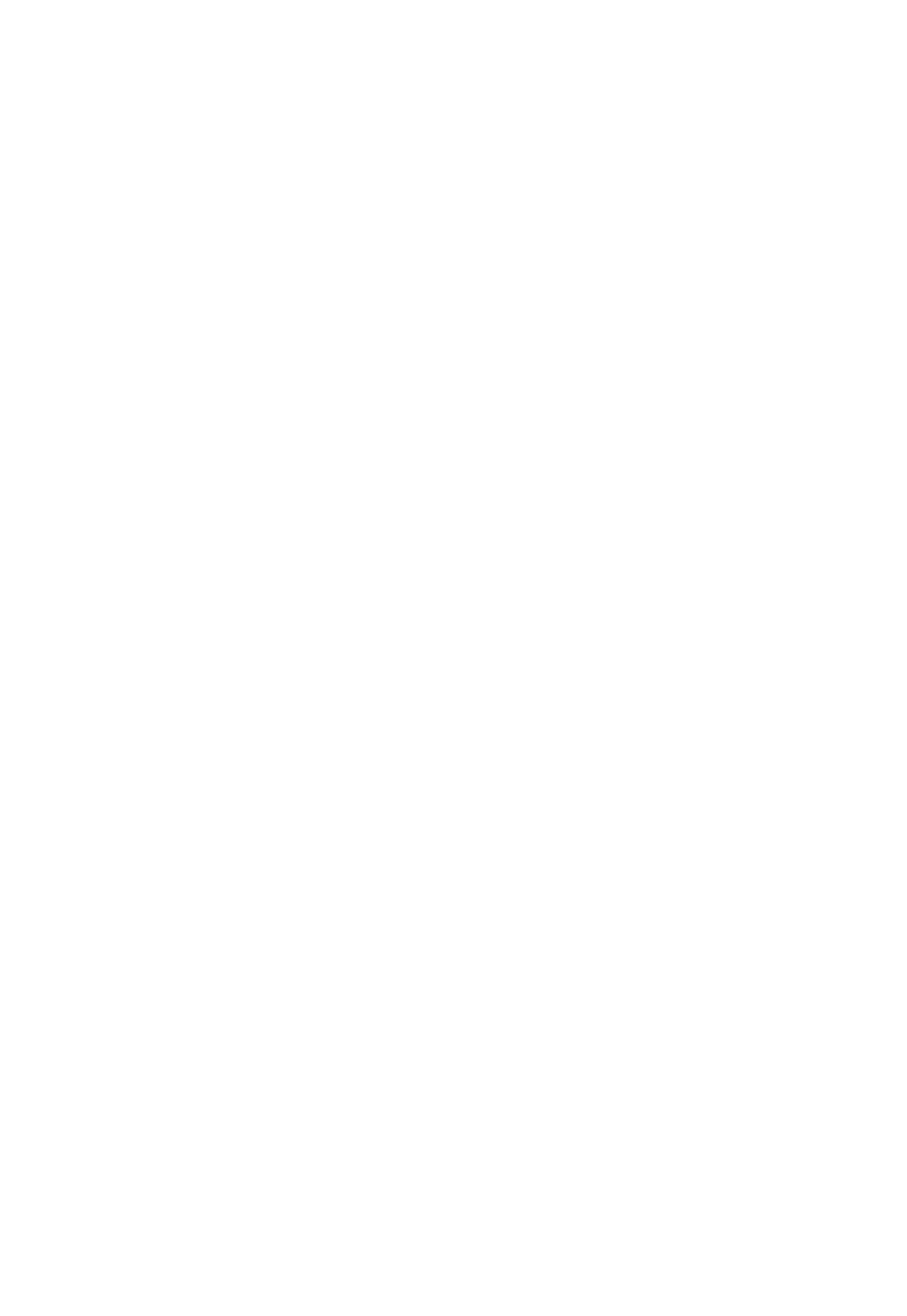

INCH Duo charging station is designed with all users
in mind. The station service area is comfortably
accessed through wide-opening service door, where
click-in component modules ensure faster field
maintenance. Added tilt and door status sensors
allow instant information in case of the traffic
accident or vandalism, helping you increase
infrastructure safety and maintain your network in
great shape.

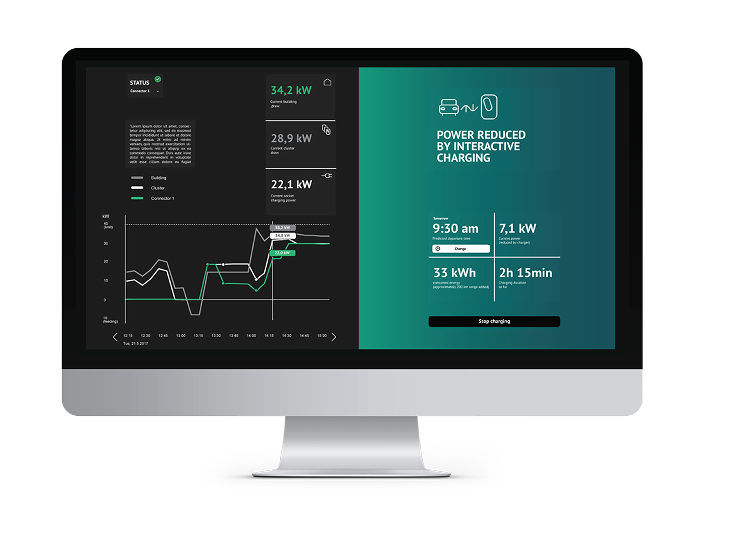

Web interface for
remote access and
maintenance
Monitor and manage charging through the dedicated
web interface either from a phone or computer. The
web app works on any device in the same network
and gives the user an in-depth insight into charging
energy consumption.
Unlock the full
potential with Ocean
back-end system
Connecting charging stations in charging management
system open up new possibilities for management and
monetization of charging infrastructure, remote
maintenance and support for users. Offer users a seamless
transition between charging locations with a single app,
while keep track of all your charging equipment out in the
field.
